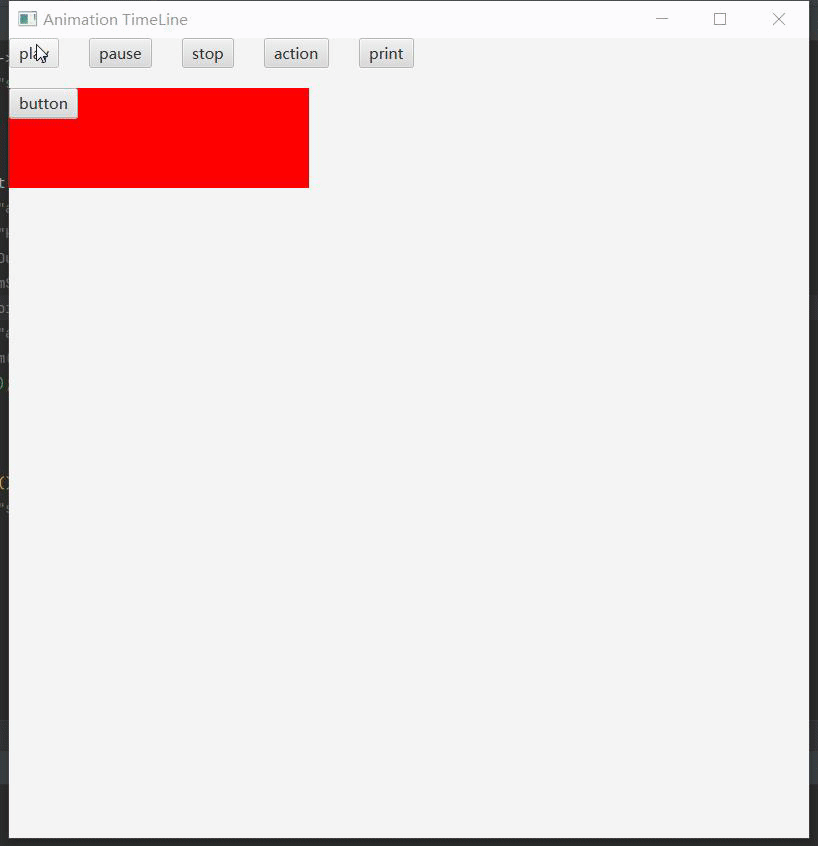

Animation动画 Timeline

ToggleButton play = new ToggleButton("play");
ToggleButton pause = new ToggleButton("pause");
ToggleButton stop = new ToggleButton("stop");
ToggleButton action = new ToggleButton("action");
ToggleButton print = new ToggleButton("print");
ToggleGroup toggleGroup = new ToggleGroup();
play.setToggleGroup(toggleGroup);
pause.setToggleGroup(toggleGroup);
stop.setToggleGroup(toggleGroup);
action.setToggleGroup(toggleGroup);
print.setToggleGroup(toggleGroup);
HBox hBox = new HBox(30);
hBox.getChildren().addAll(play, pause, stop, action, print);

动画

• 创建时间线动画，帧率为60（默认）Timeline timeline = new Timeline(60);

• 创建时间点

  // kf1配合kf2，效果是原点位置从0水平移动300
  // kf2配合kf3，效果是从(300,0)位置垂直移动100
  KeyValue keyValue1 = new KeyValue(button.translateXProperty(), 0);// 要改变的监视属性，改变后的属性值
  KeyValue keyValue1y = new KeyValue(button.translateYProperty(), 0);
  KeyFrame kf1 = new KeyFrame(Duration.seconds(0), "kf1", new EventHandler<ActionEvent>() {
      @Override
      public void handle(ActionEvent event) {
          System.out.println("kf1");
      }
  }, keyValue1, keyValue1y);// 动画开始时间、动画名称、动画完成回调函数、动画改变的监视属性
  KeyValue keyValue2 = new KeyValue(button.translateXProperty(), 300, Interpolator.EASE_BOTH);// 要改变的监视属性，改变后的属性值，缓慢进入与离开
  KeyValue keyValue2y = new KeyValue(button.translateYProperty(), 0);// 要改变的监视属性，改变后的属性值
  KeyFrame kf2 = new KeyFrame(Duration.seconds(5), "kf2", new EventHandler<ActionEvent>() {
      @Override
      public void handle(ActionEvent event) {
          System.out.println("kf2");
      }
  }, keyValue2, keyValue2y);
  KeyValue keyValue3 = new KeyValue(button.translateYProperty(), 100);// 要改变的监视属性，改变后的属性值
  KeyFrame ke3 = new KeyFrame(Duration.seconds(8), "ke3", new EventHandler<ActionEvent>() {
      @Override
      public void handle(ActionEvent event) {
          System.out.println("kf4");
      }
  }, keyValue3);


• 添加时间点timeline.getKeyFrames().addAll(kf1, kf2, ke3);

• 设置动画延迟时间timeline.setDelay(Duration.seconds(1));

• 设置动画循环次数（无限循环）timeline.setCycleCount(Timeline.INDEFINITE);

• 设置动画循环次数（2次）timeline.setCycleCount(2);

• 设置动画是否自动反向播放，循环次数最少为2次timeline.setAutoReverse(true);

• 设置动画播放速率，1为正常速率，负数为倒放timeline.setRate(1);

• 动画控制

  timeline.play();// 播放
  timeline.pause();// 暂停
  timeline.stop();// 停止
  timeline.jumpTo("kf2");// 跳转到指定的动画时间点
  timeline.jumpTo(Duration.seconds(5));// 跳转到指定的动画时间点
  timeline.playFromStart();// 从动画开始时间点开始播放
  timeline.getCuePoints().put("aa",Duration.seconds(2));// 添加动画时间点
  timeline.jumpTo("aa");
  timeline.playFrom(Duration.seconds(5));// 从指定时间点开始播放


• 动画属性

  timeline.getTargetFramerate()// 获取动画的目标帧速率
  timeline.getTotalDuration().toSeconds()// 获取动画的总时长，单位秒
  timeline.getCurrentTime().toSeconds()// 获取动画当前时间，单位秒


• 动画完成回调函数

  timeline.setOnFinished(event -> {
      System.out.println("timeline finished");
  });


• 动画状态改变监听

  timeline.statusProperty().addListener((observable, oldValue, newValue) -> {
      System.out.println("status = " + newValue.toString());
  });
