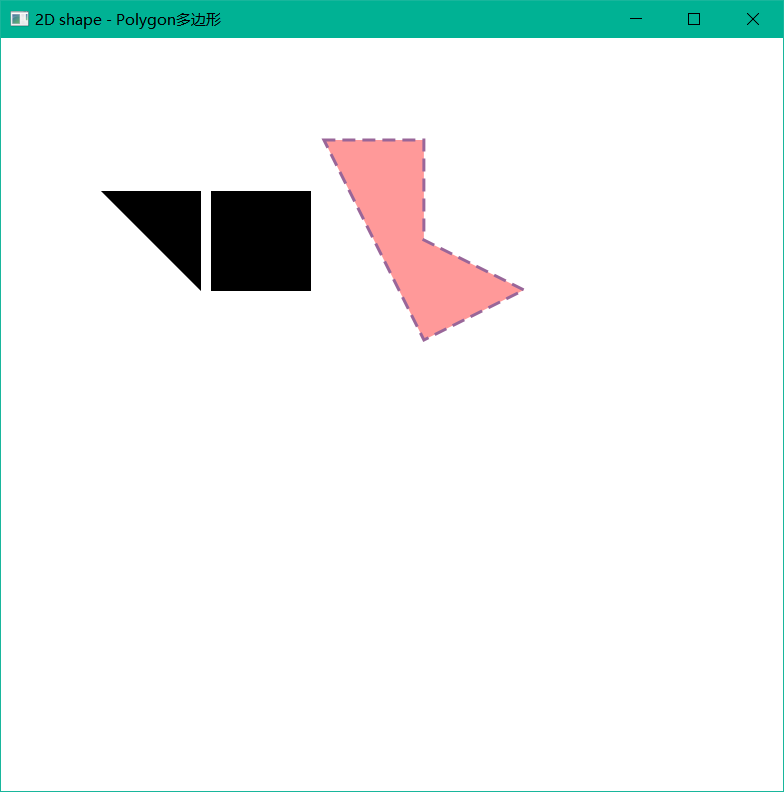

2D图形 Polygon多边形

• 创建多边形

  double[] points = {
        0.0, 0.0,
        100.0, 0.0,
        100.0, 100.0
  };// 三个点坐标
  // 通过构造方法创建
  Polygon polygon = new Polygon(points);
  // 通过对象方法创建
  polygon1.getPoints().addAll(0.0, 0.0, 100.0, 0.0, 100.0, 100.0, 0.0, 100.0);


• 其他设置

  double[] points2 = {
        0.0,0.0,
        100.0,0.0,
        100.0,100.0,
        200.0,150.0,
        100.0,200.0
  };
  Polygon polygon2 = new Polygon(points2);
  polygon2.setFill(Color.valueOf("#ff9999"));
  polygon2.setStrokeWidth(3);
  polygon2.setStroke(Color.valueOf("#996699"));
  polygon2.getStrokeDashArray().addAll(10.0, 10.0);
  box.getChildren().add(polygon2);
