TableView自定义单元格

准备数据

StudentProperty student1 = new StudentProperty("鸢一折纸", 20, 80.0, false);
StudentProperty student2 = new StudentProperty("本条二亚", 21, 90.0, false);
StudentProperty student3 = new StudentProperty("时崎狂三", 22, 100.0, false);
StudentProperty student4 = new StudentProperty("冰芽川四糸乃", 23, 70.0, false);
StudentProperty student5 = new StudentProperty("五河琴里", 24, 60.0, false);
StudentProperty student6 = new StudentProperty("星宫六喰", 20, 80.0, false);
StudentProperty student7 = new StudentProperty("镜野七罪", 21, 90.0, false);
StudentProperty student8 = new StudentProperty("八舞夕弦", 22, 100.0, false);
StudentProperty student9 = new StudentProperty("八舞耶俱矢", 23, 70.0, false);
StudentProperty student10 = new StudentProperty("诱宵美九", 24, 60.0, false);
StudentProperty student11 = new StudentProperty("夜刀神十香", 24, 60.0, false);
ObservableList<StudentProperty> list = FXCollections.observableArrayList();
list.addAll(student1, student2, student3, student4, student5, student6, student7, student8, student9, student10, student11);
// 拷贝可观察列表
List<StudentProperty> listBackup = new ArrayList<>(list);
TableView<StudentProperty> tableView = new TableView<>(list);
tableView.setLayoutX(100);
tableView.setLayoutY(100);
tableView.setPrefWidth(500);
tableView.setPrefHeight(200);
tableView.setPlaceholder(new Text("None Data"));
// 选择性显示或隐藏某列
tableView.setTableMenuButtonVisible(true);

为实体类的每个属性创建列

TableColumn<StudentProperty, String> nameCol = new TableColumn<>("姓名");
nameCol.setCellValueFactory(new PropertyValueFactory<>("name"));
TableColumn<StudentProperty, Integer> ageCol = new TableColumn<>("年龄");
ageCol.setCellValueFactory(new PropertyValueFactory<>("age"));
TableColumn<StudentProperty, Double> scoreCol = new TableColumn<>("充能");
scoreCol.setCellValueFactory(new PropertyValueFactory<>("score"));
TableColumn<StudentProperty, Boolean> isBoyCol = new TableColumn<>("性别");
isBoyCol.setCellValueFactory(new PropertyValueFactory<>("gender"));
tableView.getColumns().add(nameCol);
tableView.getColumns().add(ageCol);
tableView.getColumns().add(scoreCol);
tableView.getColumns().add(isBoyCol);
// 设置每列宽度相同（列拉长时挤占空间）
tableView.setColumnResizePolicy(TableView.CONSTRAINED_RESIZE_POLICY);

自定义每一列的单元格

姓名列

nameCol.setCellFactory(new Callback<TableColumn<StudentProperty, String>, TableCell<StudentProperty, String>>() {
    @Override
    public TableCell<StudentProperty, String> call(TableColumn<StudentProperty, String> param) {
        return new TableCell<StudentProperty, String>() {
            String name = null;
            @Override
            protected void updateItem(String item, boolean empty) {
                super.updateItem(item, empty);
                if (empty || item == null) {
                    return;
                }
                // 设置居中
                this.setAlignment(Pos.CENTER);
                name = item;
                initGraphic();
            }
            @Override
            public void startEdit() {
                super.startEdit();
                TextField textField = new TextField(name);
                this.setGraphic(textField);
                // 回车提交事件
                textField.setOnKeyPressed(event -> {
                    if (event.getCode() == KeyCode.ENTER) {
                        commitEdit(textField.getText());
                    }
                });
            }
            @Override
            public void cancelEdit() {
                super.cancelEdit();
                initGraphic();
            }
            @Override
            public void commitEdit(String newValue) {
                super.commitEdit(newValue);
                name = newValue;
            }
            private void initGraphic() {
                // 单元格文本居中
                Label label = new Label(name);
                this.setGraphic(label);
            }
        };
    }
});

年龄列

ageCol.setCellFactory(new Callback<TableColumn<StudentProperty, Integer>, TableCell<StudentProperty, Integer>>() {
    @Override
    public TableCell<StudentProperty, Integer> call(TableColumn<StudentProperty, Integer> param) {
        return new TableCell<StudentProperty, Integer>() {
            Integer age = 0;
            @Override
            protected void updateItem(Integer item, boolean empty) {
                super.updateItem(item, empty);
                if (empty || item == null) {
                    return;
                }
                this.setAlignment(Pos.CENTER);
                age = item;
                initGraphic();
            }
            @Override
            public void startEdit() {
                super.startEdit();
                Spinner<Integer> spinner = new Spinner<>(0, 100, age);
                this.setGraphic(spinner);
                // 回车提交事件
                spinner.setOnKeyPressed(event -> {
                    if (event.getCode() == KeyCode.ENTER) {
                        commitEdit(spinner.getValue());
                    }
                });
            }
            @Override
            public void cancelEdit() {
                super.cancelEdit();
                initGraphic();
            }
            @Override
            public void commitEdit(Integer newValue) {
                super.commitEdit(newValue);
                age = newValue;
            }
            private void initGraphic() {
                // 单元格文本居中
                Label label = new Label(age.toString());
                this.setGraphic(label);
            }
        };
    }
});

分数列（不可编辑）

scoreCol.setCellFactory(new Callback<TableColumn<StudentProperty, Double>, TableCell<StudentProperty, Double>>() {
    @Override
    public TableCell<StudentProperty, Double> call(TableColumn<StudentProperty, Double> param) {
        return new TableCell<StudentProperty, Double>() {
            @Override
            protected void updateItem(Double item, boolean empty) {
                super.updateItem(item, empty);
                if (empty || item == null) {
                    return;
                }
                ProgressIndicator progressIndicator = new ProgressIndicator(item / 100);
                this.setGraphic(progressIndicator);
            }
        };
    }
});

性别列

isBoyCol.setCellFactory(new Callback<TableColumn<StudentProperty, Boolean>, TableCell<StudentProperty, Boolean>>() {
    @Override
    public TableCell<StudentProperty, Boolean> call(TableColumn<StudentProperty, Boolean> param) {
        return new TableCell<StudentProperty, Boolean>() {
            Boolean gender = false;
            @Override
            protected void updateItem(Boolean item, boolean empty) {
                super.updateItem(item, empty);
                this.setAlignment(Pos.CENTER);
                if (empty) {
                    return;
                }
                gender = item;
                initGraphic();
            }
            @Override
            public void startEdit() {
                super.startEdit();
                ComboBox<Boolean> comboBox = new ComboBox<>();
                comboBox.setPromptText(gender ? "男" : "女");
                comboBox.setConverter(new StringConverter<Boolean>() {
                    @Override
                    public String toString(Boolean object) {
                        return object ? "男" : "女";
                    }
                    @Override
                    public Boolean fromString(String string) {
                        return null;
                    }
                });
                comboBox.getItems().addAll(true, false);
                this.setGraphic(comboBox);
                // 回车提交事件
                comboBox.setOnKeyPressed(event -> {
                    if (event.getCode() == KeyCode.ENTER) {
                        commitEdit(comboBox.getValue());
                    }
                });
            }
            @Override
            public void cancelEdit() {
                super.cancelEdit();
                initGraphic();
            }
            @Override
            public void commitEdit(Boolean newValue) {
                super.commitEdit(newValue);
                gender = newValue;
            }
            private void initGraphic() {
                Label label = new Label(gender ? "男" : "女");
                this.setGraphic(label);
            }
        };
    }
});

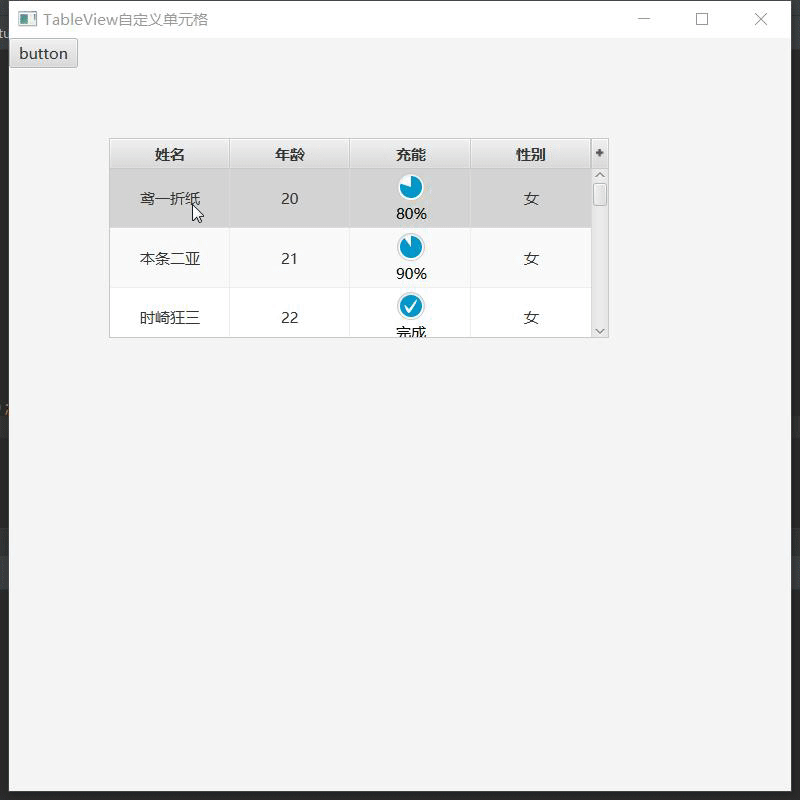

效果图
