Dragboard 鼠标拖拽结合剪贴板

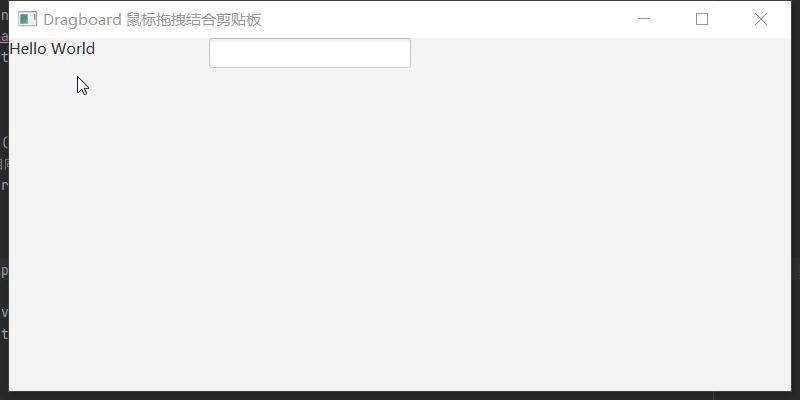

将标签文本拖拽到输入框中

1. 创建标签和输入框

   Label label = new Label("Hello World");
   label.setLayoutX(0);
   label.setLayoutY(0);
   TextField textField = new TextField();
   textField.setLayoutX(200);
   textField.setLayoutY(0);


2. 标签拖拽检测

   label.setOnDragDetected(event -> {
       // 开始拖拽动作（剪切模式，模式不会影响具体效果，最终效果仍需定义代码进行实现）
       Dragboard dragboard = label.startDragAndDrop(TransferMode.MOVE);
       Text text = new Text(label.getText());
       // 设置拖拽时的图标
       WritableImage writableImage = new WritableImage((int) label.getWidth(), (int) label.getHeight());
       text.snapshot(new SnapshotParameters(), writableImage);
       dragboard.setDragView(writableImage, 0, 0);
       // 将文本内容复制到拖拽剪贴板中
       ClipboardContent content = new ClipboardContent();
       content.putString(label.getText());
       dragboard.setContent(content);
   });


3. 拖拽经过textField

   textField.setOnDragOver(event -> {
       // 于上面的设置的模式相同，如果不写此行，下面setOnDragDropped不会生效
       event.acceptTransferModes(TransferMode.MOVE);
   });


4. 在textField上释放拖拽动作

   textField.setOnDragDropped(event -> {
       // 获得拖拽面板的数据
       textField.setText(event.getDragboard().getString());
       event.setDropCompleted(true);
   });
   ClipboardContent content = new ClipboardContent();
   content.put(DataFormat.IMAGE,new Image("file:E:\\Users\\86158\\图片\\110300202.jpg"));
   clipboard.setContent(content);
   label.setOnDragDone(new EventHandler<DragEvent>() {
       @Override
       public void handle(DragEvent event) {
           if (event.getTransferMode() == TransferMode.MOVE) {
               label.setText("");
           }
       }
   });

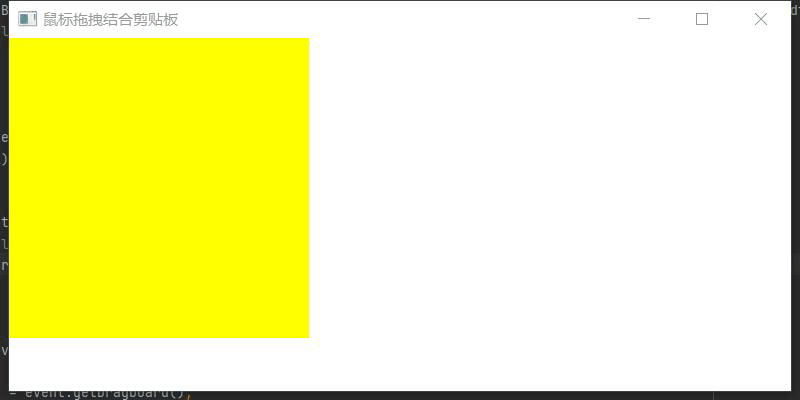

将外部图片拖拽到界面中

1. 拖拽进入到hBox

   hBox.setOnDragEntered(event -> {
       // 设置拖拽进入时的边框效果
       hBox.setBorder(new Border(new BorderStroke(Color.RED, BorderStrokeStyle.SOLID, new CornerRadii(0), new BorderWidths(1))));
       // System.out.println("setOnDragEntered:event.getTransferMode() = " + event.getTransferMode());  // MOVE
   });


2. 拖拽退出到hBox外

   hBox.setOnDragExited(event -> {
       hBox.setBorder(null);
   });


3. 拖拽经过hBox

   hBox.setOnDragOver(event -> {
       // System.out.println("setOnDragOver:event.getTransferMode() = " + event.getTransferMode());  // MOVE
       event.acceptTransferModes(event.getTransferMode());
   });


4. 拖拽释放

   hBox.setOnDragDropped(event -> {
       // 获取拖拽面板
       Dragboard dragboard = event.getDragboard();
       // 加载URL
       if (dragboard.hasUrl()) {
           imageView.setImage(new Image(dragboard.getUrl()));
       }
   });
